Types of plc used in industry

Programmable Logic Controller (PLC) also known as Industrial Computer or programmable controllers is the major component used in the industrial automation sector. different Types of plc used in industry

They are used in many manufacturing industries due to its robust construction and functional features like sequential control, timers, and counters, ease of programming and hardware usage reliable controlling capabilities and ease of hardware usage so this PLC is more than a special-purpose digital computer in industries as well as in other control-system areas.

After designing the architecture and Process we need to choose the right controller. For selecting a Programable logic controller(PLC) first step,

we have to choose the type of PLC(Programable logic controller) based on the following criteria.

Criteria for selecting PLC :

1. Number of PLC inputs and PLC outputs

2. Most Important thing is Memory – Based on memory defind size of the program

3. Communications: Defferent type of Communication Like serial and network connections allow the PLC to be programmed and to communicate with other PLCs.

4. Scan Time : Depending on the size of the program, a larger program needs shorter scan times. And, the shorter the scan time, the higher the cost.

5. Number of Analog/Digital I/O modules: Depends on the application. For warehouse applications/Powerplant application, a large number of input & Output cards may be required.

6. Scan Time : Shorter scan time good for process.a larger program needs shorter scan times.And, the shorter the scan time Depending on the size of the program More about Scantime click here

7. Software: programming software and other tools determines the ease of programming and debugging


Based on the criteria, PLC can be chosen among these types :

Must Read : 5 Most Popular PLC programming languages nowdays

Must Read : Top 15 best Advantage of plc over relay

Must Read : Plc inputs and outputs

Types of PLC -Modular PLC:

In modular type PLC, the number of I/Os can be increased by the addition of modules to the existing PLC.

In modular type PLC, a number of I/O supported can be increased to a few hundred by adding I/O modules.

The name Modular itself means that the number of modules can be connected to the device same in modular PLC several modules can be connected that is several components can be connected to a common rack or bus with extendable I/O capabilities.

The Modular PLC also contains power supply modules, CPU and other I/O modules that are plugged in the same rack which may or may not be from same manufacturers.

The modular PLCs comes in different sizes, their sizes vary with I/Os, the number of power supply and their computing capabilities.

Modular PLCs may be further divided into small, medium and large PLCs depending on program memory size and the number of I/O features.

Small PLC is a small sized PLC designed in such a way that it can be placed beside the equipment to be controlled.

The hard-wired relay logic, counters, timers, etc are replaced by this type of PLC. The expandability of I/O module is limited to just one or two modules and it uses logic instruction list or relay ladder language as a programming language.

Medium-sized PLC is mostly used, there are many plug-in modules that are mounted on the backplane of the system.

There are additional I/O cards available so the number of inputs and outputs can be increased and in addition to this, the communication modules can also be increased compared to small PLC.

Large PLCs are used in complex process control functions and has higher capacity compared to small and medium-sized PLC in terms of memory, programming languages, I/O points, and communication modules, and so on.

Mostly this type of PLCs is used in larger plants, also used in supervisory control and data acquisition (SCADA) systems, distributed control systems, etc.

Must Read : PLC Communication protocols

Must Read : Analysis of the PLC Operation : You must know

Must Read : PLC Hardware : Everything you need to know

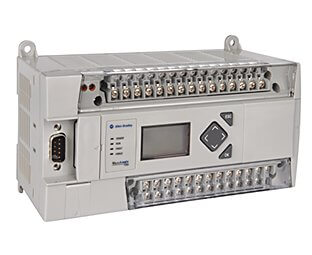

Types of PLC – Compact PLC:

The compact PLC don’t have the capability to expand the modules as it has fixed number of I/O module and external I/O card

Must Read : PLC History : The Story So Far….

Must Read : How to use Counter in PLC programming ?

Must Read : Type of PLC TIMER

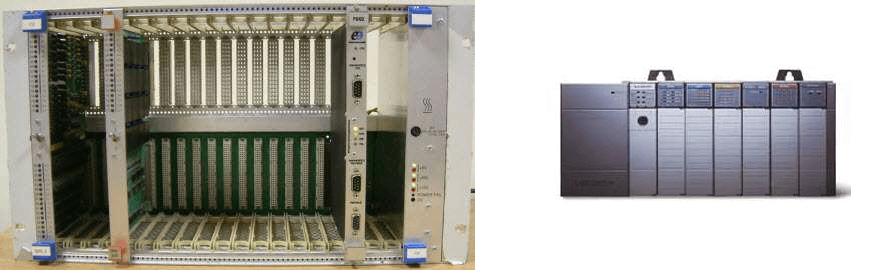

Types of PLC – Rack PLC:

In rack type PLC all the components of the PLC areas separate module and are assembled to form one unit by mounting the individual components on a rack. This PLC can support up to thousands of I/Os.

Must Read : PLC Wiring In Control Panel

Must Read : History of Allen Bradley PLC

Must Read : PLC Overview
